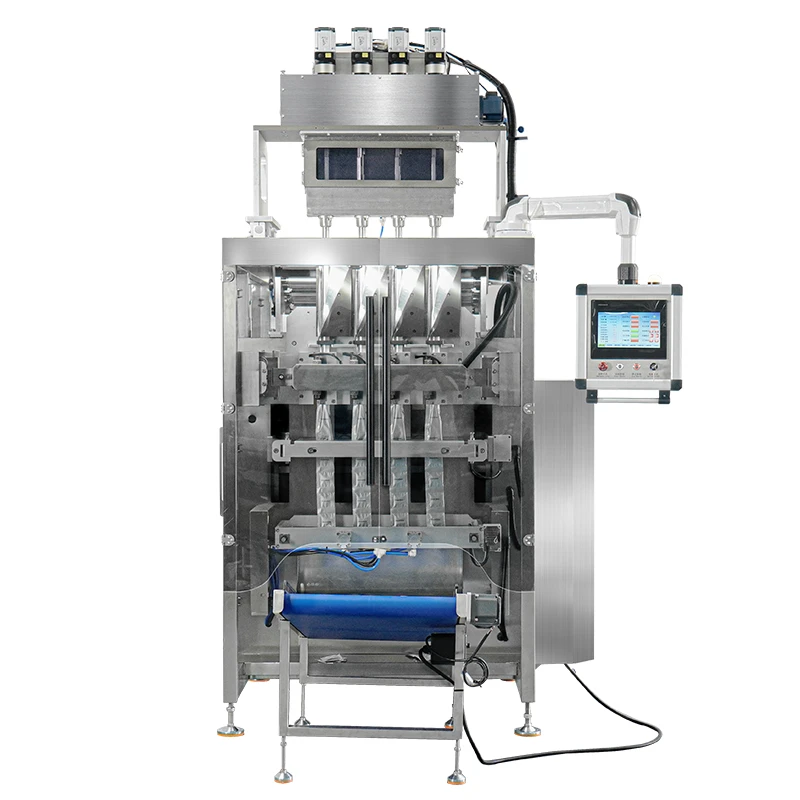

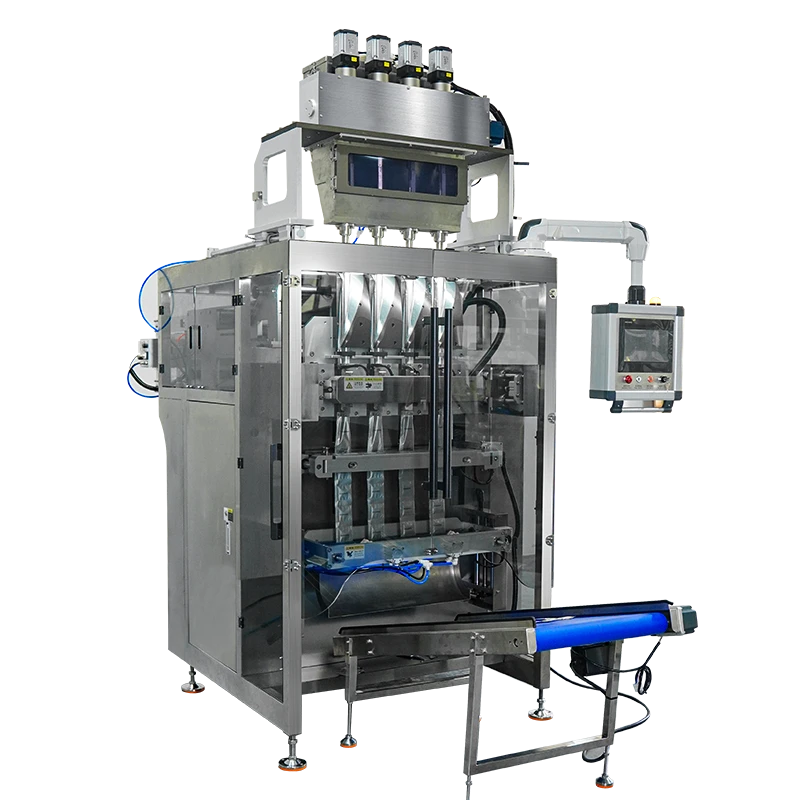

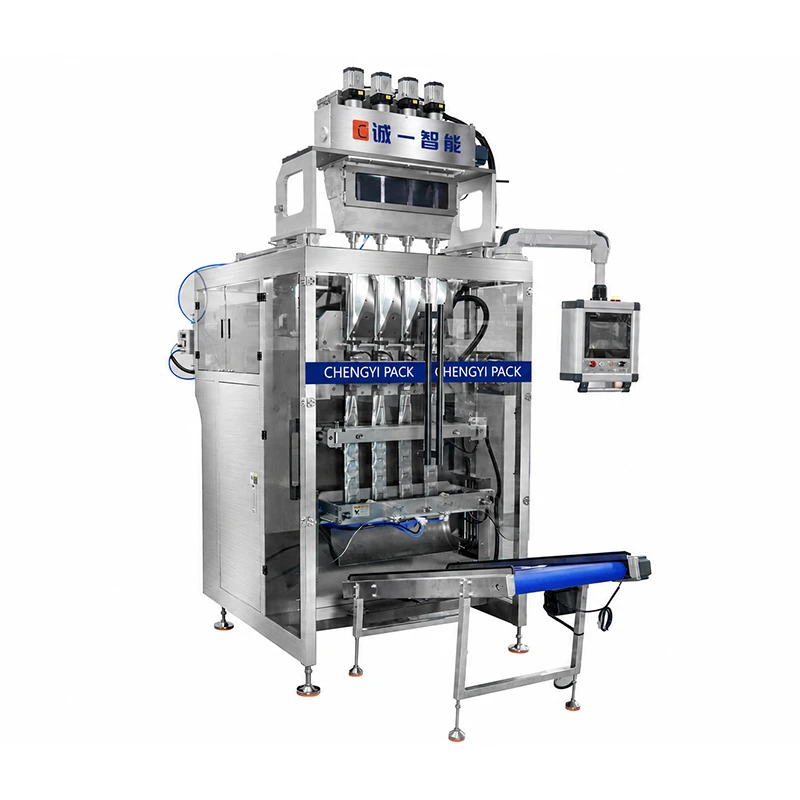

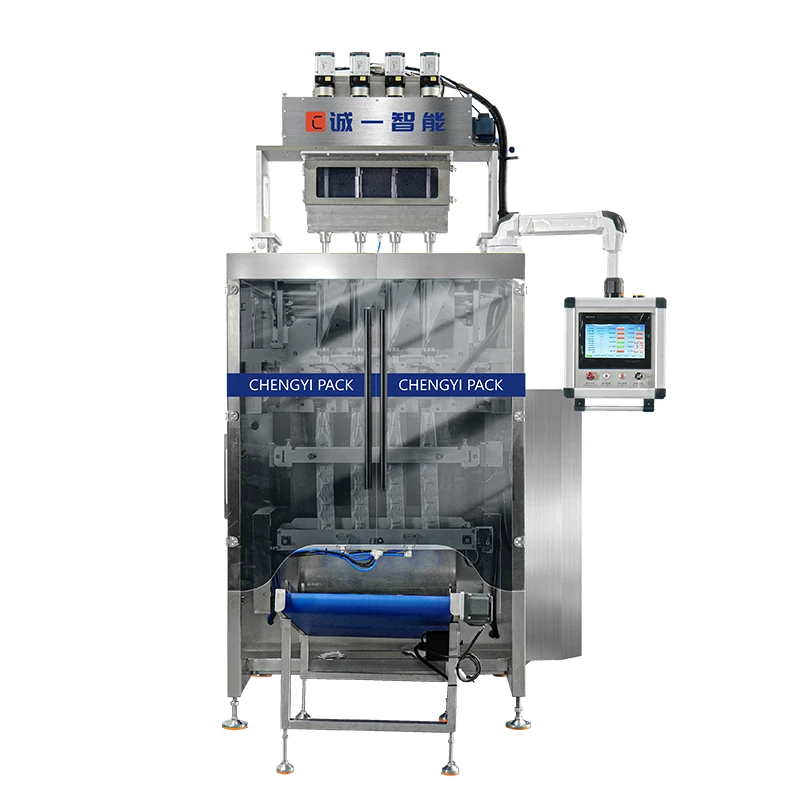

Sachet Machines for Powders

Technical Details



Capacity 30-50  bags/lane/min ( Depend on the features of material )
Stick bag length Max.180mm
Stick bag width Max.120mm
Filling method 1. piston pump 2. ceramic pump 3. peristaltic pump
Weight range 1-150ml
Film material 1. Composite film 2. aluminium film
Cutting type 1. straight cutting 2. zigzag cutting 3. continuous cutting

APPLICATIONS

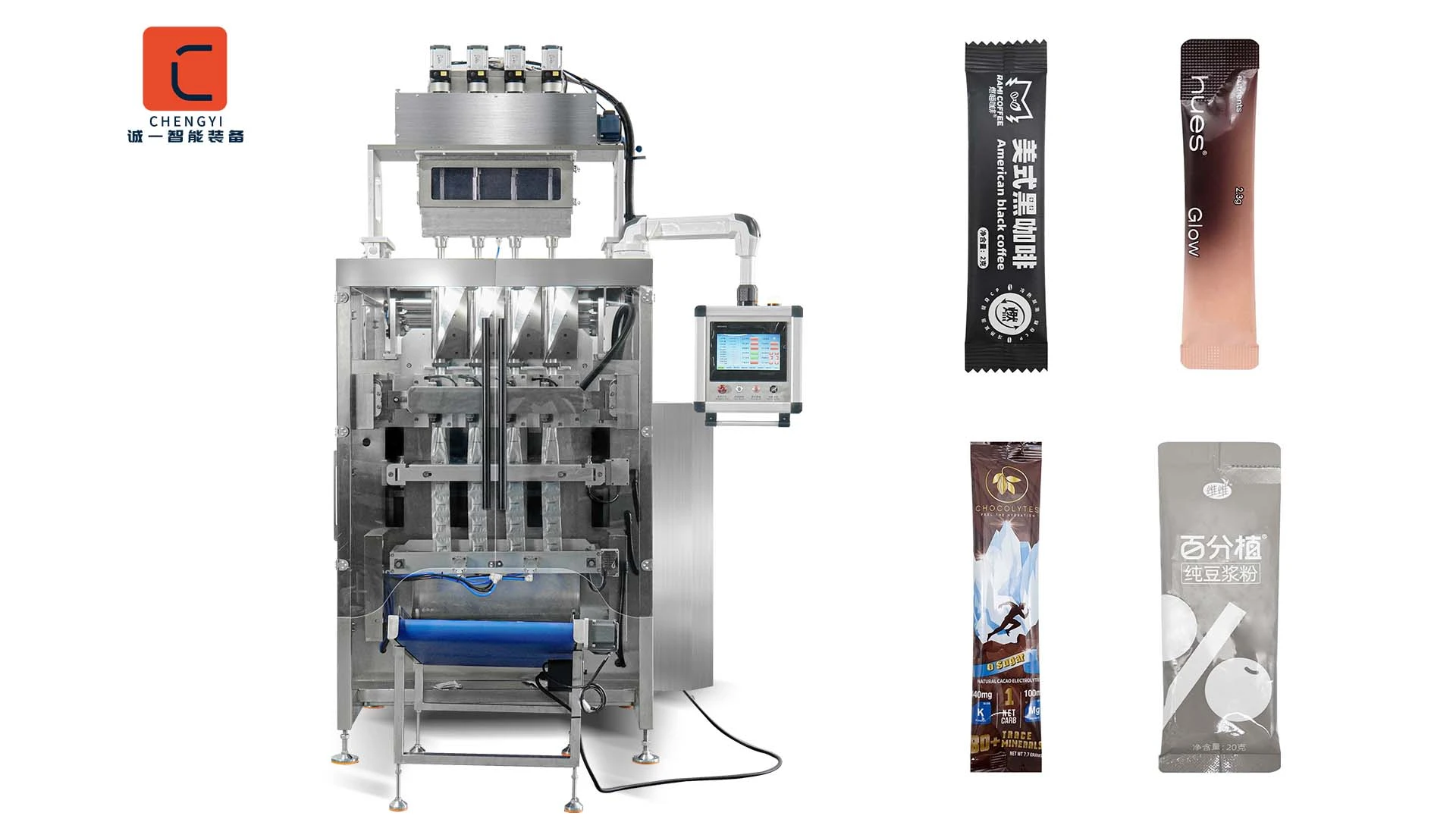

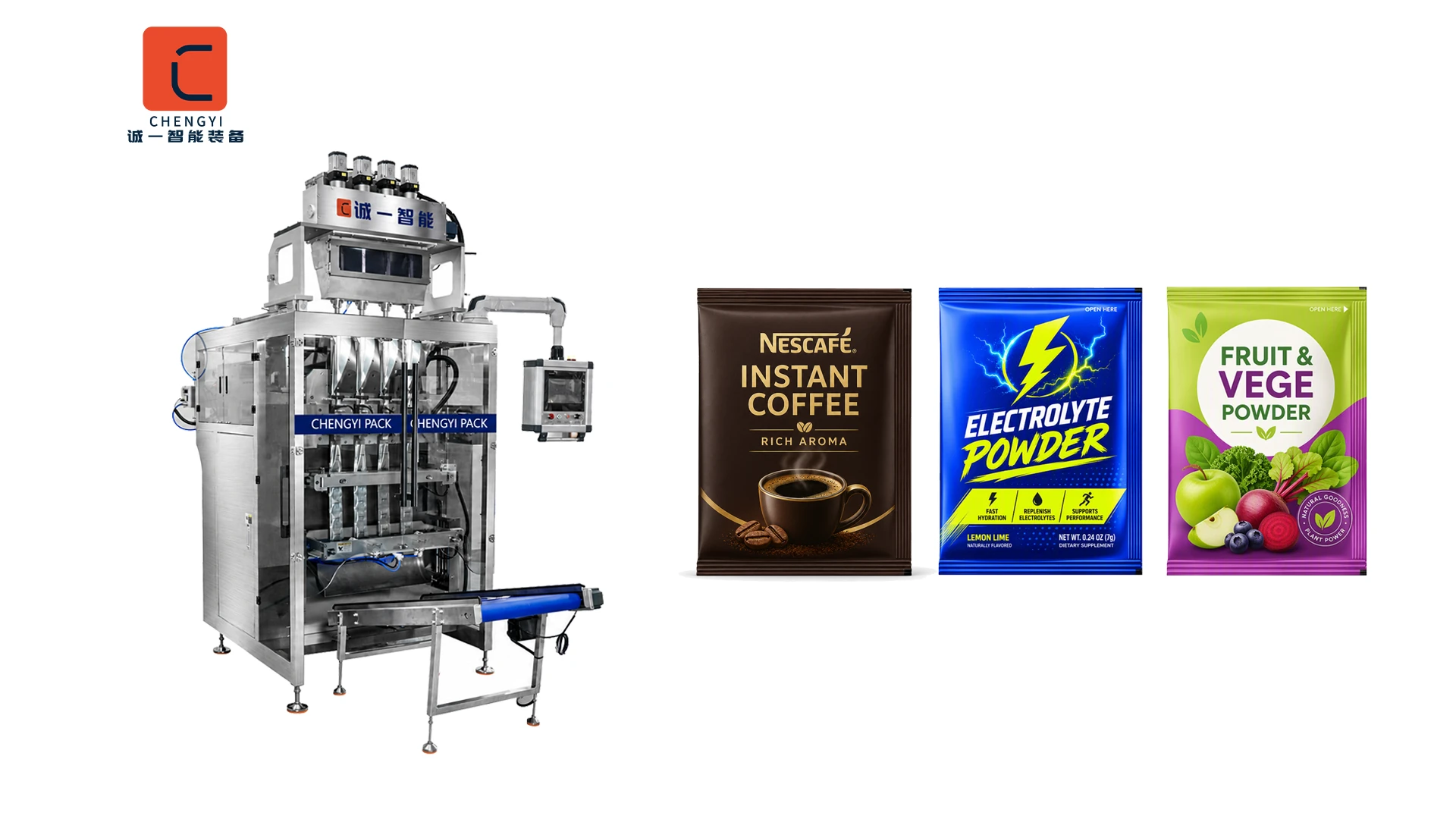

Multi-lane 3-Side-Seal Powder Packaging Machine For:

Food industry: coffee powder, milk powder, fruit drink powder, protein powder, supplements powder, seasoning powder, etc.

Non-food industry: pharmaceutical powder, cosmetics powder, chemical powder.



As a manufacturer with 15 years of experience in packaging machine design and production, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging requirements and we will provide you with the most suitable solution.

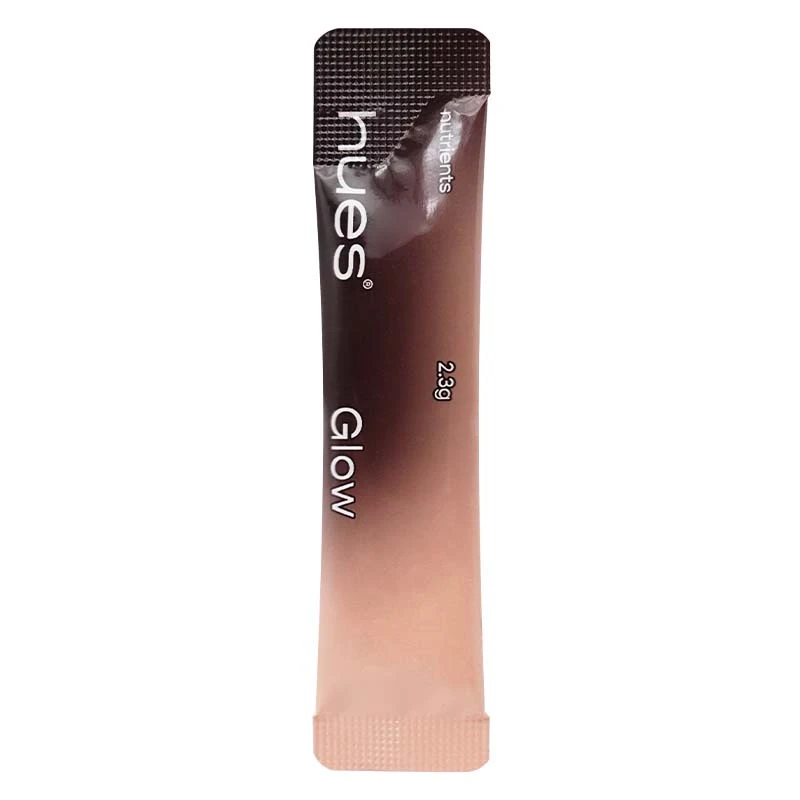

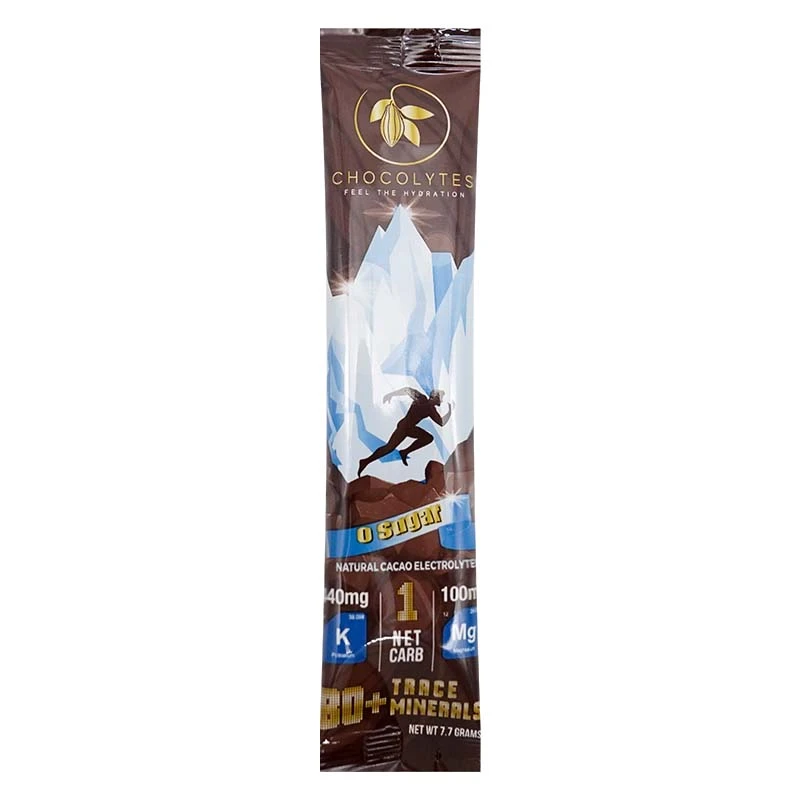

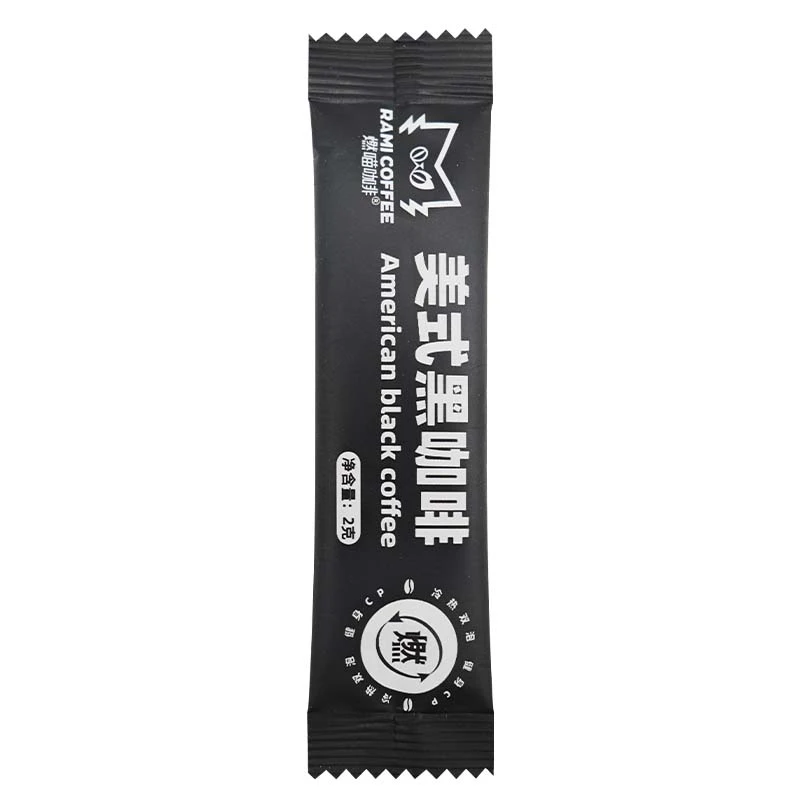

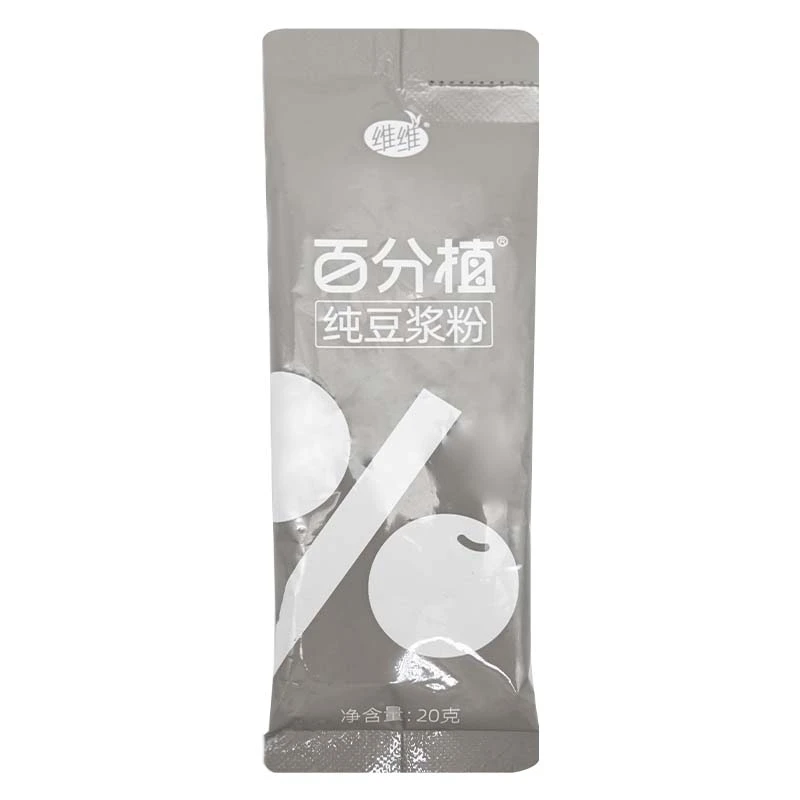

Types of Packages

VIDEOS

  • Multi-lane 3-Side-Seal Powder Packaging Machine

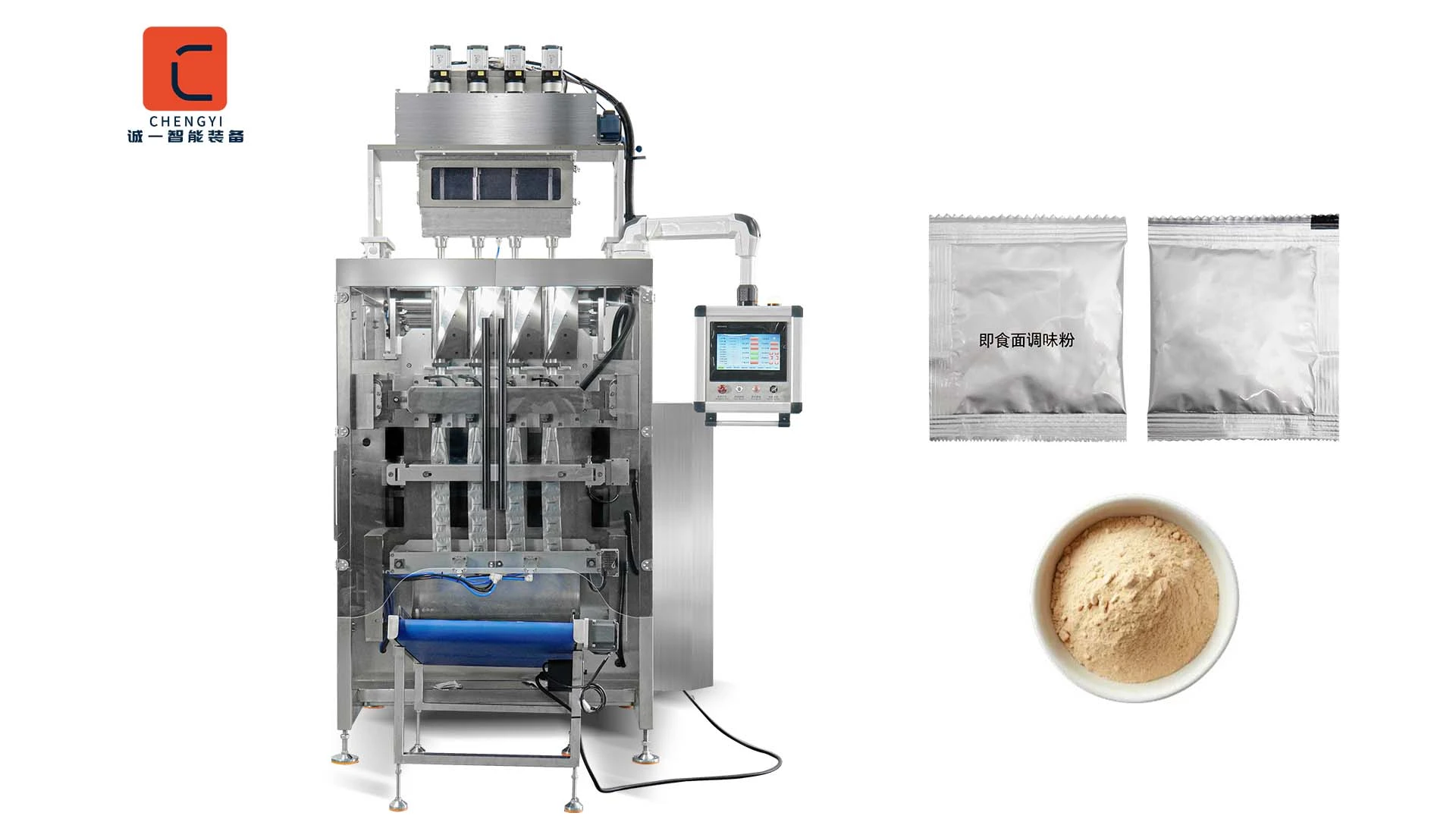

  • Multi-lane three-side sealing seasoning and spice powder packaging machine

OPTIONAL DEVICES

Which Dosing Systems are Suitable for Packaging Powders?

Auger guarantees our customers dose dry, dusty and powder, free and non free-flowing products  with high filling accuracy, according to their needs. At the same time, auger is suitable for any products with components that make them lumpy or sticky. Therefore, it is possible to precisely adjust the rotational speed and nnumber of auger rotations. This action allows fast and simple adjustments of the operational parameters.

Our sachet machines for powders provide a compact solution combining the high output within a compact footprint. These solutions include many advantages such as high dosing accuracy, reduced wrapping material waste, easy handling and cleaning. Moreover, our user-friendly and modular sachet machines allow our customers to reduce downtime and meet demanding production requirements.

Features

  • Customer- and product-specific design with maximum flexibility

  • Robust, compact machine footprint, user-friendly technology

  • Optimal accessibility, easy handling, modular design and quick cleaning thanks to "swivel" mounted dosing units. No tools needed for disassembling

  • The auger filling technology ensures accuracy and reliability for non free-flowing powders and sticky products

  • Wide parameter adjustment range

  • Fast, easy parts and size changeover, with operator-friendly design

  • Washdown operations

  • Compliance with cGMP, ease of cleaning and easy access to all machine parts

  • Good visibility of product flow and packaging operations

  • Clear and modular structure

Specifications

Model CY300F CY600F CY900F
Lanes 2-4 Lanes 3-10 Lanes 4-16 Lanes
Bag width 25-75mm 25-100mm 25-110mm
Film width Max:300mm Max:600mm Max:900mm
Sealing Type 3 side sealing 3 side sealing 3 side sealing
Packing speed 20-40Bags/Lane/Min 20-40Bags/Lane/Min 20-40Bags/Lane/Min
Measuring long screw/short screw/short screw with cup long screw/short screw/short screw with cup long screw/short screw/short screw with cup
Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut Straight cutting/Zig zag cutting/Round cutting/Die-cut Straight cutting/Zig zag cutting/Round cutting/Die-cut
Bag length 50mm-180mm 50mm-180mm 50mm-180mm
Power Supply 50HZ/220V/3.5kw 50HZ/220V/5.5kw 50HZ/220V/7.5kw
Dimension(mm) 1900*1440*3130 1860*1750*3200 1860*2050*3300
Weight about 900kg about 1200kg about 1500kg

After-Sales Service Commitment

Services

  • Conformity with CE and FDA regulations
  • UL certification predisposition
  • Transparent running costs: automated estimation of the machine’s production costs ensures the best quality at a competitive price.
  • TPM: we provide our customers with a wide range of tools aimed at improving machines performance through a more effective maintenance management by following the TPM Total Productive Maintenance philosophy
  • Technical support on site and/or through remote assistance
  • Data transfer management and real-time performance analysis
  • FMEA and risk assessment management
