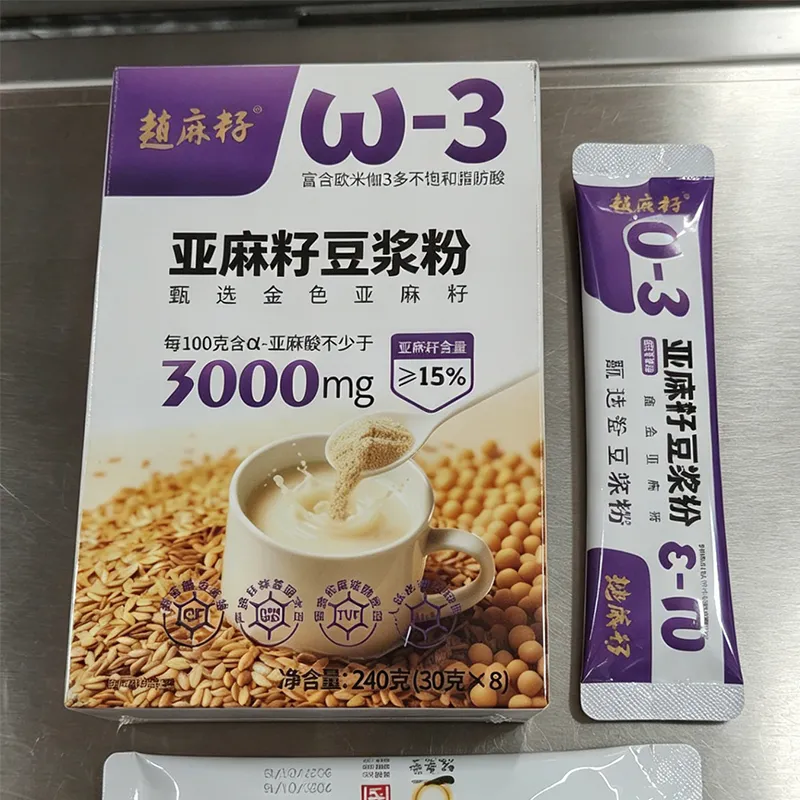

Packaging Lines for Stick Packs in Cartons

Chengyi Pack has been designing and building customized automatic packaging lines for stick packs in cartons for over 15 years.

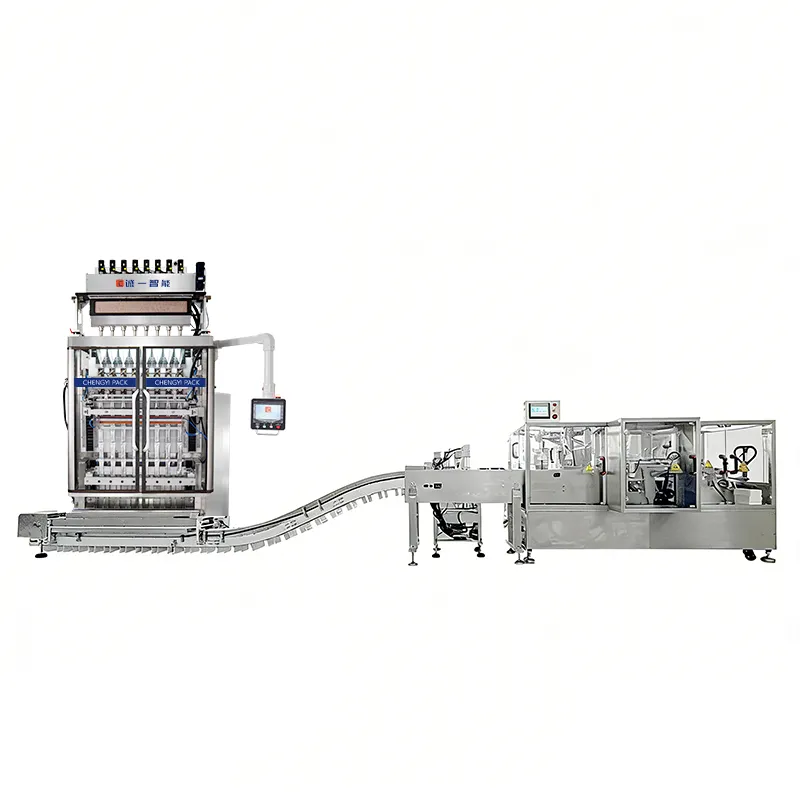

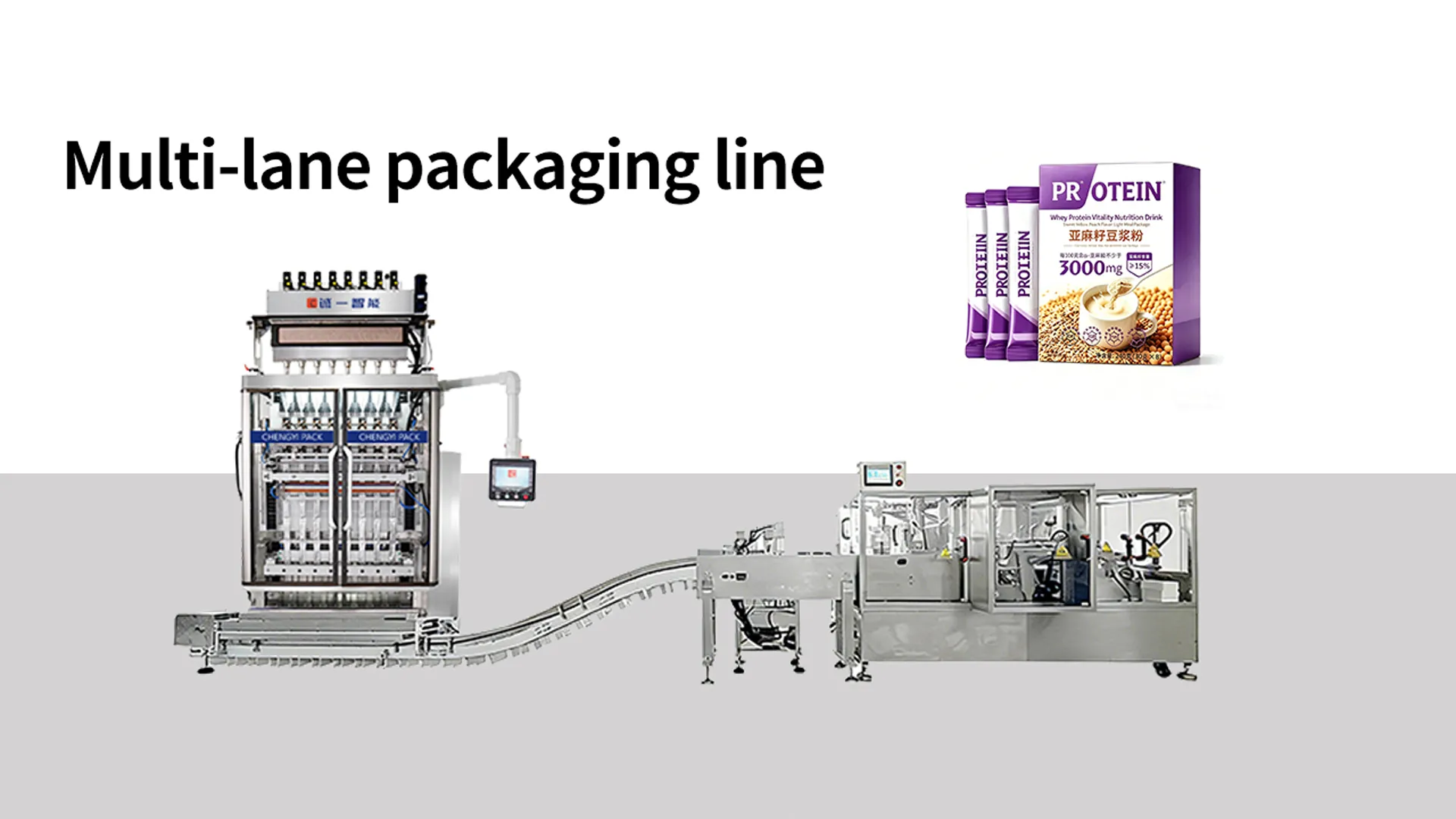

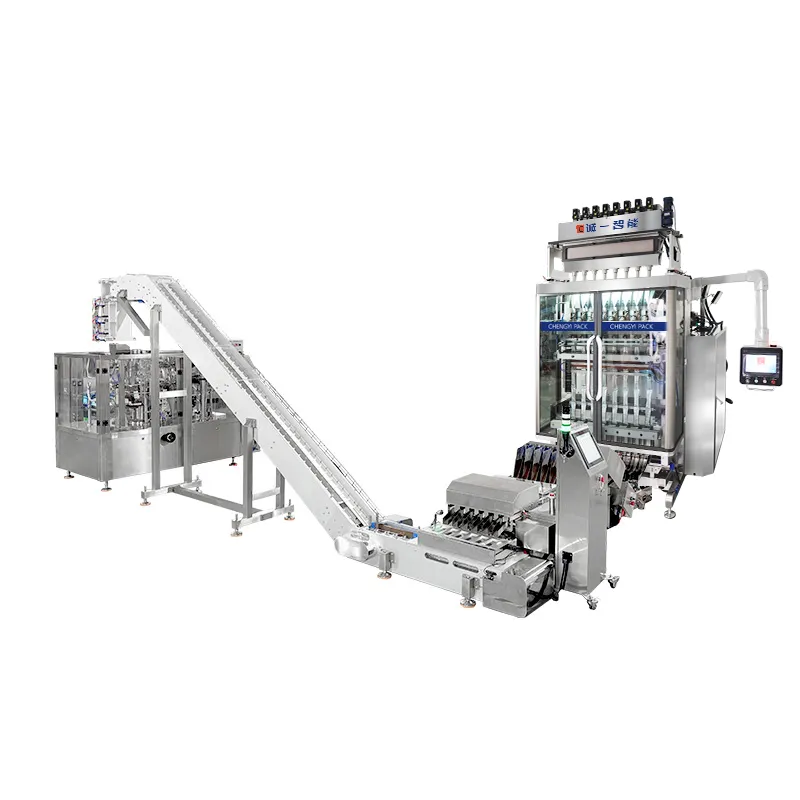

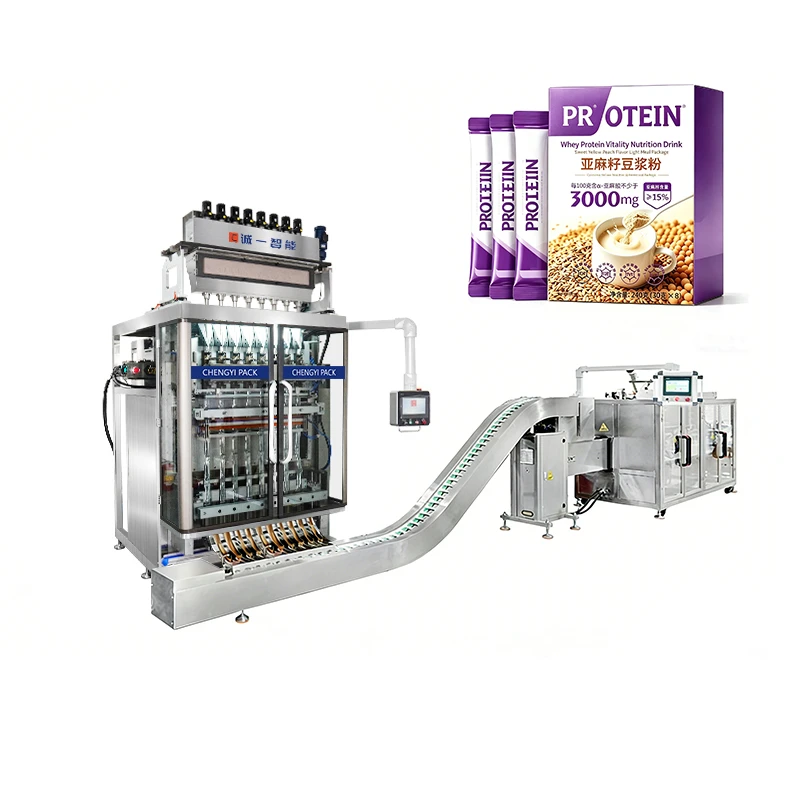

Our primary packaging machine for sticks packs feeds our patented counting and stacking unit, which is totally customizable. Then, this unit transfers the stick packs to the secondary packaging machine or even directly inserts them into the carton in case of top loading with flat blanks. With pre-glued cartons, the cartoning machine provides for side loading. Our secondary packaging machines insert the leaflet and close the cartons before their exit. In addition to that, we design specifically-dedicated systems for on edge placement and multi-level cartoning.

We are the single supplier of custom-built packaging lines. We design and develop the best solution to integrate the primary packaging machine with the cartoning machine, in order to guarantee the highest efficiency. Nevertheless, we can integrate in our packaging lines even third-party machinery. This feature enhances the flexibility of our machines and lines.

Our packaging lines are completely integrated and user-friendly. In fact, you need only one operator to manage all the processes of our line.

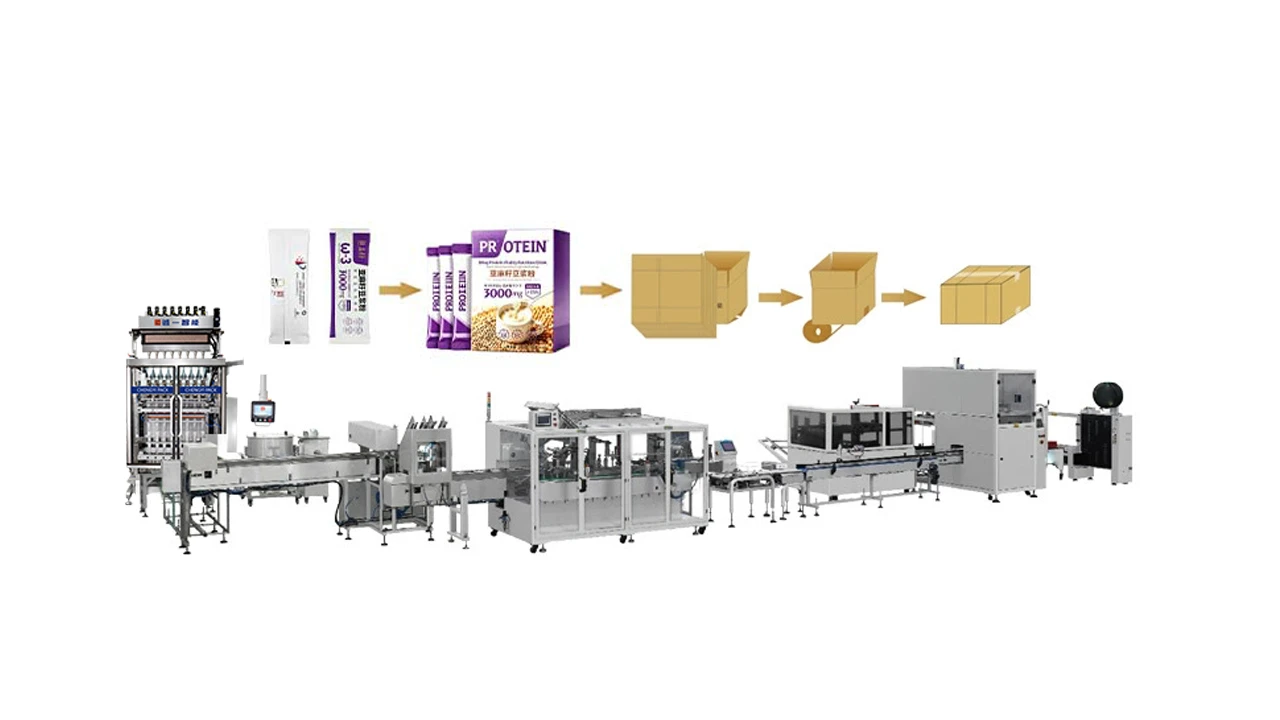

All the packaging lines for stick packs in cartons designed by Chengyi Pack include:

• At least one stick pack packaging machine. We provide your machine to produce the stick packs with the dimensions and doses requested;
• Counting and stacking unit. We design this section with many possibilities of customization depending on counts, stick pack position, including on edge placement, and stick pack transfer. We provide patented systems to fulfill any request, including on edge placement;
• Secondary packaging machine. There are multiple solutions, which depend on the type of carton requested, pre-glued or flat blank.

Chengyi Pack designs and builds customized solutions for primary packaging. Our machines can produce a wide range of stick packs, including specific typologies such as pillow, side fin or shaped stick packs.

We can provide your stick pack machine with any dosing system, according to your needs and depending on the composition of the product. For this reason, we offer:

• Auger and basculating for powders and granules;
• Gravimetric and flowmeter for liquid or semiliquid products;
• Piston pump for liquid, semiliquid or viscous products.

Moreover, we design each stick pack machine to guarantee high levels of precision, quality and efficiency.

The company’s patented design to insert and fold sealing film around forming tubes represents one of the advantages that ensures maximum efficiency and reliability, for which Chengyi Pack machines are known worldwide.

Chengyi Pack patented counting and stacking units are completely customizable. We give you the possibility to pack into cartons as many stick packs as you want, in your preferred position. The entire packaging line is flexible, whether in the number of stick packs into the carton or their position inside of it.

On request, we can provide our counting and stacking units with a specifically-dedicated patented system to turn “on edge” the stick packs. Then, each row of stick packs is transferred into the pockets of the cartoning machine infeed chain.

Moreover, we can provide our on edge placement system with a further patented technology installed in the cartoning unit, which allows you to insert stick packs on edge in a two-level box, with or without separator between the two levels.

Pre-glued cartons

Chengyi Pack provides cartoning machines for pre-glued cartons equipped with a side loading system.

After the counting and stacking unit transfers the stick packs to the cartoning station, the packs are inserted from the side of the carton in a precise and efficient way.

This solution can be integrated with key accessories such as dynamic or static checkweighers, leaflet insertion systems with presence check, and tamper-evident labeling machines, creating a complete and reliable secondary packaging process.

Flat blank cartons

For flat blank cartons, Chengyi Pack provides cartoning machines designed to erect and close boxes starting from flat blanks.

This solution includes two separate units: one for carton forming and one for carton closing with hot-melt glue. The system is equipped with a top loading configuration, allowing the counting and stacking unit to insert the stick packs into the cartons from above. As with the pre-glued carton solution, the machine can also be equipped with accessories such as checkweighers, leaflet insertion systems with presence check, and tamper-evident labeling machines.
