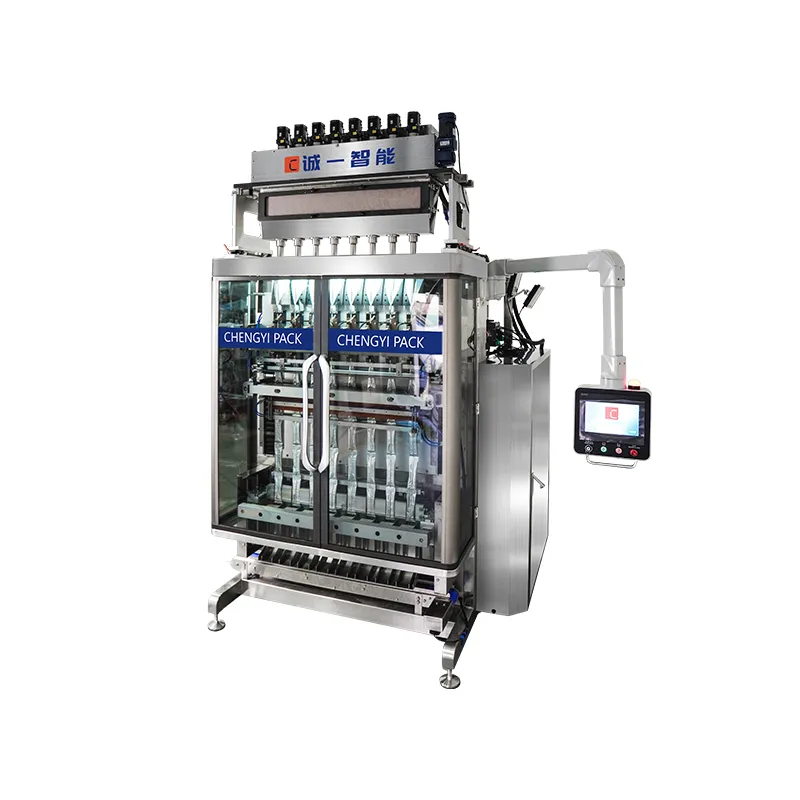

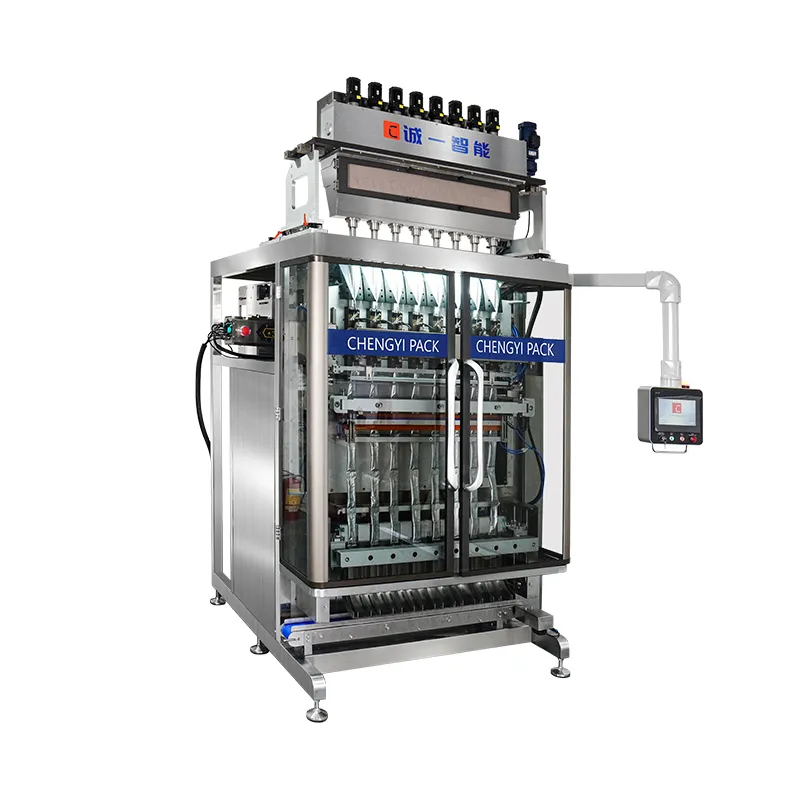

Milk Powder Stick Packing Machine

Technical Details



Capacity 320 bags/min ( Depend on the features of material )
Stick bag length Max.180mm
Stick bag width Max.105mm
Filling method Servo motor auger filler
Weight range 0.5-50g
Film material 1. Composite film 2. aluminium film
Cutting type 1. straight cutting 2. zigzag cutting 3. round cutting

APPLICATIONS

Suitable for various kinds of powder packaging, such as milk powder, fruit drink mix, nutritional supplements, medicinal powder, protein powder, coffee powder, multivitamin composite powder ,whey protein modified milk powder ,Probiotic Powder ,etc.

With 13 years of experience in designing and manufacturing packaging machinery, we offer proven expertise across both food and industrial sectors.

Tell us your requirements – we deliver the right solution.

BAG SAMPLES

VIDEOS

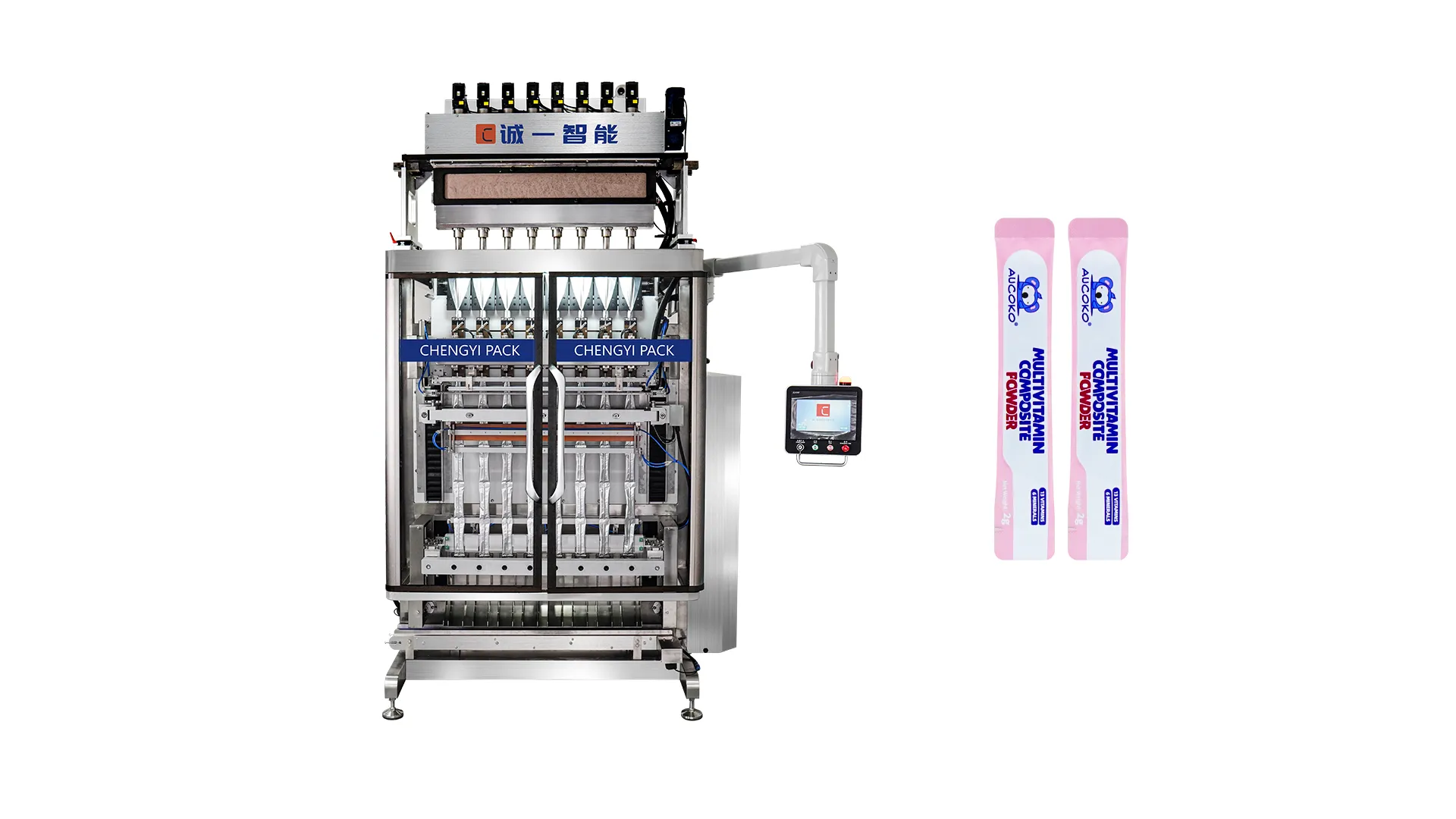

  • Multi-Lane Milk Powder Stick Packing Machine

OPTIONAL DEVICES

Specifications

Model CY300BF CY600BF CY900BF
Lanes 2-4 Lanes 3-10 Lanes 4-16 Lanes
Bag width 20-70mm 20-95mm 20-105mm
Film width Max:300mm Max:600mm Max:900mm
Sealing Type Back seal Back seal Back seal
Packing speed 20-40Bags/Lane/Min 20-40Bags/Lane/Min 20-40Bags/Lane/Min
Measuring long screw/short screw/short screw with cup long screw/short screw/short screw with cup long screw/short screw/short screw with cup
Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut Straight cutting/Zig zag cutting/Round cutting/Die-cut Straight cutting/Zig zag cutting/Round cutting/Die-cut
Bag length 50mm-180mm 50mm-180mm 50mm-180mm
Power Supply 50HZ/220V/3.5kw 50HZ/220V/5.5kw 50HZ/220V/7.5kw
Dimension(mm) 1900*1440*3130 1860*1750*3200 1860*2050*3300
Weight about 900kg about 1200kg about 1500kg

Feature

  • Made of food-grade 304 stainless steel and complies with GMP production standards.
  • Equipped with film offset correction system to ensure the stability of bag making.
  • Servo motor pulls the film to make the bag sealing more stable and the finished bag more beautiful.
  • Touch screen operation, default in both Chinese and English, language can be customized.
  • Major brands electrical components , PLC control, high intelligence, fast speed, high efficiency.
  • Automatic film breakage recognition system, automatic alarm and shutdown, and roll film alignment and docking device.

After-Sales Service Commitment

1.After-Sales Service Commitment

1、To provide comprehensive services and relieve customers of concerns, our company has established a sound after-salesservice system and effective measures, including a dedicated after-sales hotine for consutation and technical sup port. Wealso have an after-sales service department for regular customer follow-ups. With over 10 professtional after-sales engineers.we guarantee high-quality after-sales support. We hereby make the following repair service commitments:

2、The machine is under free warranty for one year from the date of receipt.

2.After-Sales Process

1. Ater the machine is instaled and commissioned successfully, we will create a customer file and assign a professional after-salesengineer for technical follow-up and regular usage tracking. In case of malfunctions, you may contact our after-sales departmentvia phone or in writing. We will respond within 1 hour to understand the fault details and confim on-site repair time (additional feesapply for on-site services for out-of-province customers)

2. Our engineers wil first inspect the machine thoroughly,explain the fault cause, then perform repairs. You need to confirm the
completion and sign the after-sales service work sheet.

3.Warranty Exclusions

We are not liable for free repair in the following cases (paid services are available):

1、The machine is beyond the warranty period;

2、Malfunctions caused by improper operation/maintenance or man-made damage;

3、Force majeure (e.g., earthquakes, fires);

4、Excluding wearing parts.

To provide you with better after-sales service and protect your rights and interests,Dongguan Chengyi Intelligent Equipment Co.,Ltd. Welcomes you to supervise our work.
